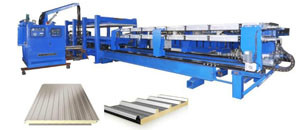

10-200mm Automatic PU Sandwich Panel Machine PU Sandwich Panel Roll Forming Machine
PU Sandwich Production Line
Main Technical Data:
Size: 16000*1800*2800mm
Weight: 9000kg
Capacity: 7.5kw
Power of air compressor: 4kw
Pressure of exhaust:0.8Pa
Foaming Speed: 20m/min
Foaming Thickness: 20mm
| Technical Data |
| Productivity | PU foam shutter slat as the drawing |
| Man Power Required | One operator with one assinstant |
| Main Power | 40KW |
| Forming Speed | 12-15mtr./min |
| Total Weight | 45 tons |
| Overall Machine Length Required | 50M |
| Approximate Machine Height | 3M |
| Complete Line Consist Of |
| Decoiler |
| Roll forming |
| Fomaning&Heating machine |
| Cutting unit |
| PLC automatic control cabinet |
| Product run out table/Auto-Stacker |
Hydraulic Uncoiler----Color Steel Forming Machine------ Gluing System------ Main Composite Machine-------Automatic Tracking Cutting System -------- Elevator System------ Controlling System
Technical Parameters
Color Steel Forming Part
1) roller station: 14
2) material of roller:45#steel
diameter of roller:Φ70mm
3) rolling mould: two sets
blade: two sets
material of blade:Cr12
4) main motor power:4.0Kw(Tai Wan Delta frequency converter or as per customers requirement)
5) forming speed:0-8m/min
6) sprocket: P-25.4
7) thickness: less than 1mm
7) dimension:12*1.5*0.8m
Gluing System
1) glue pump power:1.5KW
2) two Sets
3) glue pump : 2Sets
Usage:
This foaming panel can be used in steel structure workshop,easy building and air clean room as walls,ceilings.
Feature Of Our Machines:
1. Our machines can uses galvanized steel sheet, colored armor plate or aluminum plate as the material plate.
2. Controlling by computer, PLC display, operation is easy, running is steady andreliable,endurable, maintenance-free
3. We can make and design all kinds of roll forming machine according to customer's request.
FAQ
1Q: Are you a factory or trading company ?
1A: We are a factory.
2Q: Where is your factory located?
2A: Our factory is located in WUXI City, Jiangsu Province, China. You are warmly welcome
to visit us !
3Q: What should I provide if I`d love to customized the machine?
3A: We need profile drawing, material informations: feeding width(1220mm?),
thickness(0.35-0.6mm?), yield strength of steel coil(G550Mpa?), voltage and your special
requirements.
4Q: What I should do if I just start to know roll forming machinery?
4A: Contact us immediately, we provide free consultant pre-sales service.
5Q: Can you make the machine according to my design or proto type?
5A: Yes. We have an professional designer for working out the most suitable design and
production plan for the machine that you are going to book with us
6Q: How can I trust you that machines pasted testing running before shipping?
6A: 1) We record the testing video for your reference.
2) You are welcome to visit us and test machine in our factory.
7Q: Do you provide installing and training overseas?
7A: Overseas machine install and worker training services are optional.
8Q: How is your after sales support?
8A: We provide technical support on line as well as overseas services by skillful technicians.
9Q: Guarantee period:
9A: Within one year since the date of finishing commissioning. The guarantee covers all
the electric, mechanic and hydraulic parts in the line except for the easy-worn parts.
